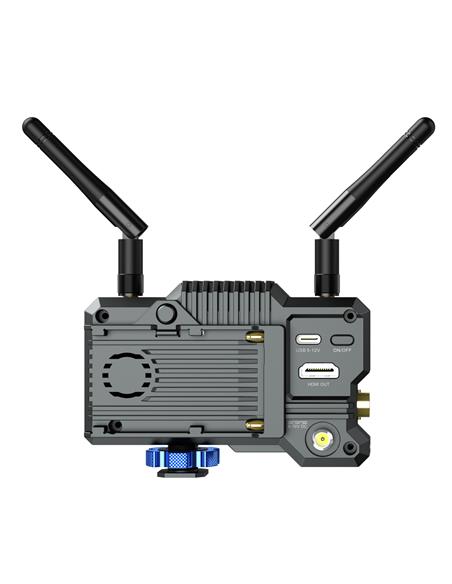

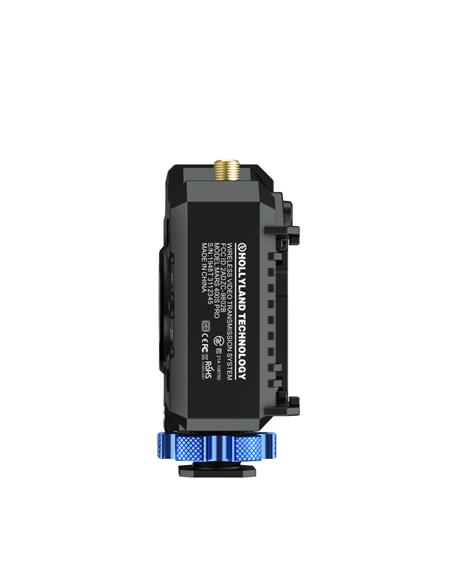

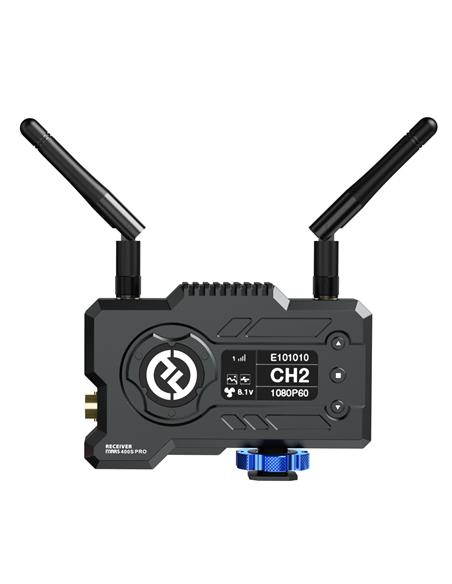

Hollyland Mars400S PRO Receiver Wireless HDMI-SDI

Wireless Range

400' / 121.92 m (Line-of-Sight)

Channel Bandwidth

20 MHz

Frequency Range

5 GHz

Latency

< 0.08 sec

RF Power

= 21 dBm

RF Sensitivity

-80 dBm

Wi-Fi

Yes

Transmitter Antenna Ports

2 x RP-SMA Male

Receiver Antenna Ports

2 x RP-SMA Male

Transmitter Video Connectors

1 x BNC (3G-SDI / HD-SDI) Input

1 x HDMI Input

Receiver Video Connectors

1 x BNC (3G-SDI) Output

1 x HDMI Output

Transmitter Other I/O

1 x USB Type-C

1 x DC Input

Receiver Other I/O

1 x USB Type-C

1 x DC Input

Embedded Audio

SDI

HDMI

Video Format

SDI/BNC:

1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

1080i at 50, 59.94, 60 fps

1080PsF at 23.98, 24, 25 fps

720p at 50, 59.94, 60 fps

HDMI:

1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

1080i at 50, 59.94, 60 fps

720p at 50, 59.94, 60 fps

576p at 50 fps

480p at 60 fps

Transmitter Panel Type

OLED

Receiver Panel Type

OLED

Transmitter Battery Support

1 x Sony L-Series / NP-F Type

Receiver Battery Support

1 x Sony L-Series / NP-F Type

Transmitter Power Connector

1 x Barrel (6 to 16V DC) Input

Receiver Power Connector

1 x Barrel (6 to 16V DC) Input

Transmitter Power Consumption

Device: (11 W)

Receiver Power Consumption

Device: (7 W)

Transmitter Mounting

1 x 1/4"-20 Female

1 x Integrated Cold Shoe

Receiver Mounting

1 x 1/4"-20 Female

1 x Integrated Cold Shoe

Materials

Metal

Transmitter Dimensions

4.33 x 2.83 x 1.34" / 11.0 x 7.2 x 3.4cm

Receiver Dimensions

4.33 x 2.83 x 1.34" / 11.0 x 7.2 x 3.4cm

Transmitter Weight

0.5 lb / 206 g

Receiver Weight

0.5 lb / 206 g
