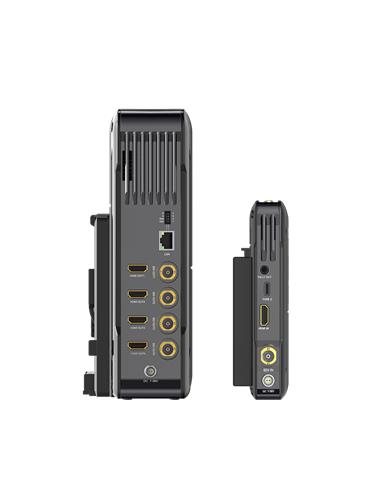

Hollyland Syscom421-4. Sólo Emisor Syscom

Wireless Range

1800' / 600 m (Line-of-Sight)

Channel Bandwidth

40 MHz

Frequency Range

5 GHz

Latency

0.07 sec (The lowest latency)

RF Power

= 22 dBm

RF Sensitivity

-90 dBm

Wi-Fi

Yes

Transmitter Antenna Ports

4 x RP-SMA Male

Receiver Antenna Ports

4 x RP-SMA Male

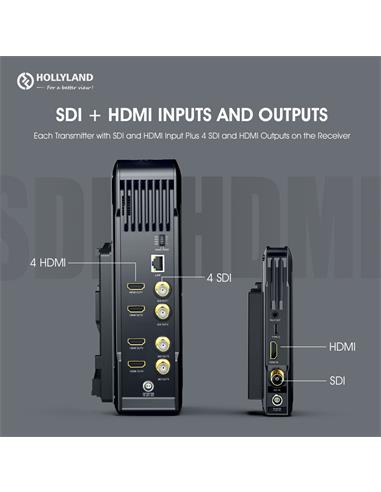

Transmitter Video Connectors

1 x BNC (3G-SDI / HD-SDI) Input

1 x HDMI Input

Receiver Video Connectors

4 x BNC (3G-SDI) Output

4 x HDMI Output

Transmitter Other I/O

1 x USB Type-C

1×3-Segment 3.5mm TALLY Output

1×DC Power Input

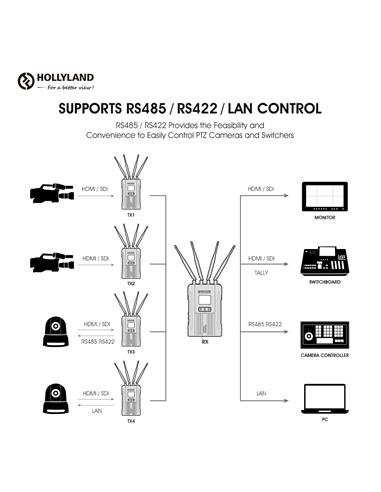

1×RS485/RS422 Interface

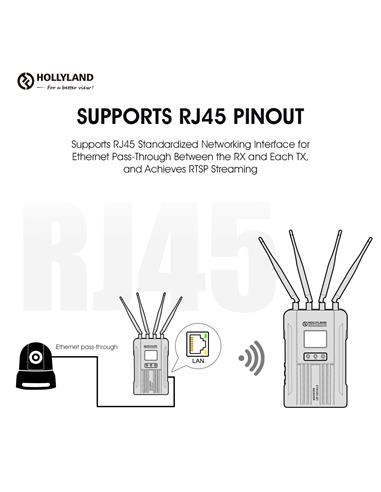

1×LAN Interface

Receiver Other I/O

1 x USB Type-C

1×DC Power Input

1×RS485/RS422 Interface

1×LAN Interface

Embedded Audio

SDI

HDMI

Video Format

HDMI:

1080p at 24, 25, 30, 50, 59.94, 60 fps

1080i at 50, 60 fps

720p at 50, 60 fps

576p at 50 fps

480p at 60 fps

SDI:

1080p at 24, 25, 30, 50, 60 fps

1080i at 50, 60 fps

720p at 50, 60 fps

Transmitter Panel Type

OLED

Receiver Panel Type

TFT

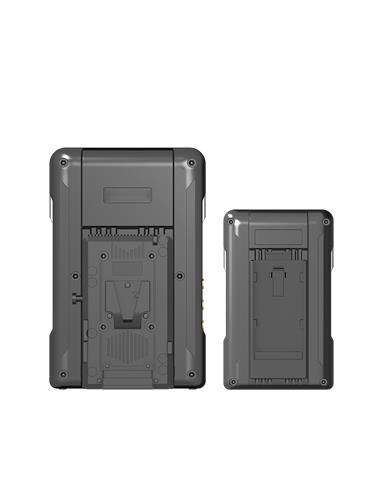

Transmitter Battery Support

1 x Sony L-Series / NP-F Type

Receiver Battery Support

1 x V-mount large capacity battery

Transmitter Power Connector

1 x Barrel (7 to 36V DC) Input

Receiver Power Connector

1 x Barrel (18 to 36V DC) Input

Transmitter Power Consumption

Device: (12 W)

Receiver Power Consumption

Device: (32 W)

Transmitter Mounting

1 x 1/4"-20 Female

2×3/8"-16 Female

Receiver Mounting

1 x 1/4"-20 Female

2×3/8"-16 Female

Materials

Metal

Transmitter Dimensions

3.46 x 1.18 x 5.67" / 8.8x 3 x 14.4 cm

Receiver Dimensions

5.82 x 2.44 x 9.53" / 14.8 x 6.2x 24.2 cm

Transmitter Weight

 0.95lb / 431.5  g

Receiver Weight

3.57 lb / 1621g
