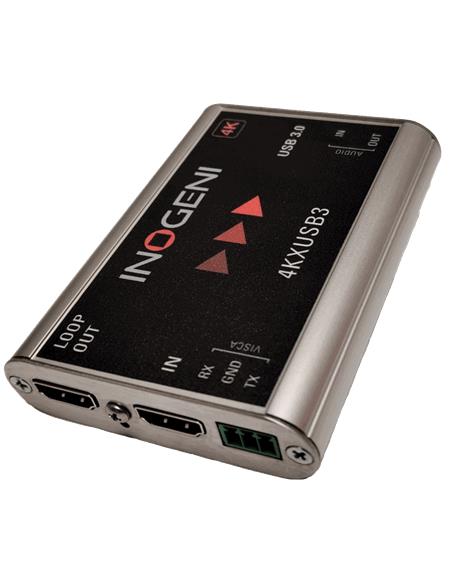

INOGENI 4K HDMI to USB 3.0 Converter with HDMI Loop
INOGENI 4K HDMI to USB 3.0 Converter with HDMI Loop

INOGENI 4K HDMI to USB 3.0 Converter with HDMI Loop

INO-4KXUSB3
Sin stock - Plazo de entrega 1 semana
€630.00
Tax excluded



The INOGENI 4KXUSB3 is an exceptional and highly versatile camera converter that offers the ability to convert uncompressed 4K Ultra HD HDMI to USB 3.0 video and audio signals. With its wide range of features and capabilities, this converter is perfect for a variety of applications and scenarios.

One of the main features of the 4KXUSB3 is its ability to convert high quality video signals without loss of quality through its HDMI connection. It can convert resolutions ranging from 4K UHD (3840/4096×2160) to lower resolutions such as 720p and 480p. In addition, it supports a variety of frame rates to ensure smooth video playback. It also offers color space options including RGB, YCbCr and different aspect ratios such as 4:4:4:4 and 4:2:2:2.

The 4KXUSB3 converter features a loop-through HDMI output, allowing for monitoring or additional device connection. It also includes a VISCA port for controlling compatible PTZ (Pan-Tilt-Zoom) cameras, facilitating precise control of cameras during recordings or live broadcasts.

As for video output, the 4KXUSB3 provides an HDMI 1.4a connector that supports the same video resolutions as the input. In addition, it offers RGB and YCbCr color space options, ensuring accurate color reproduction.

The converter's USB connectivity allows it to connect to a computer via a USB 3.0 Type-B port. It supports various video codecs, such as YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0, and MJPEG for USB 2.0. In addition, it features hardware-based automatic video scaling, color space conversion, upsampling conversion and frame rate conversion, ensuring optimal video quality.

On the audio side, the 4KXUSB3 supports 2-channel LPCM audio from the HDMI source or an audio connector. The HDMI audio channels and analog audio channels are mixed through the input USB interface, while the USB audio output and HDMI audio input are mixed through the analog audio output. To manage the audio layout, the corresponding control application can be used.

The converter also offers control options, such as a PTZ control connector for VISCA connection via a terminal block, and an RS-232 interface with a data rate of 9600 bps.

In terms of compatibility, the 4KXUSB3 requires no driver installation and is compatible with Windows (7 and above), macOS (10.10 and above) and Linux (v2638 kernel) operating systems. It supports USB 2.0 and USB 3.0 ports, and has minimum system requirements such as 4GB of RAM, an Intel Core i5 processor or equivalent, and a graphics card with dedicated memory.

The converter is compatible with all motherboards, including those from Intel, Renesas, ASMedia and Fresco Logic. It is also compatible with cameras and camcorders that have an HDMI output. It is compatible with UVC-compliant software that supports DirectShow, AVFoundation and V4L2, ensuring smooth operation with popular applications such as Microsoft Teams, Zoom, Webex and Google Meet.

The 4KXUSB3 has a compact design with dimensions of 9.9 cm x 7.4 cm x 1.9 cm (3.9" x 2.9" x 0.75"), making it easy to integrate into any setup. It is USB powered and a 3-foot USB 3.0 cable (Type-A to Type-B) and RS-232 terminal block adapter are included in the package for trouble-free installation.

The converter operates over an operating temperature range of 0°C to 45°C (32°F to 113°F) and can be stored over a temperature range of -40°C to 105°C (-40°F to 221°F). In addition, it has a relative humidity of 0% to 90% without condensation.

The INOGENI 4KXUSB3 comes with a 2-year warranty and has FCC, CE, RoHS, IEC62368, SoV, RCM, BSMI RoHS, BSMI, CB, KC, MSIP certifications. It is also TAA (Trade Agreements Act) compliant, making it suitable for use in government agencies and organizations that require TAA compliant products.

In the package, you will find a 3-foot USB 3.0 cable (Type-A to Type-B) and an RS-232 terminal block adapter. These components give you everything you need for quick and easy setup and connection.

Height (CM)
20.000000
Wide (CM)
20.200000
Lenght (CM)
15.600000
Weight (KG)
2.750000
Warranty
2 Years
