Overview

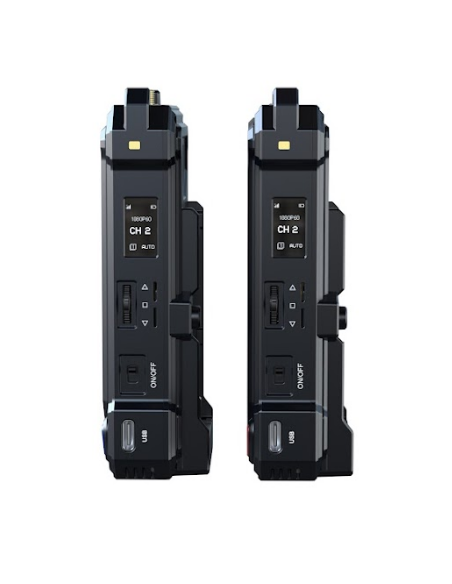

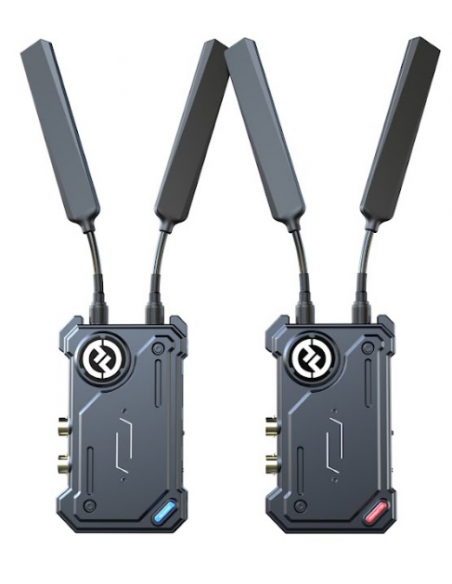

COSMO C1 is using the latest coding, decoding technology, and 5G wireless transmission technology. It can achieve ultra-low latency wireless video transmission. It has a transmission range over 1,000ft with a clean line of sight (LOS) when the transmitter is connected to 1 receiver. And,both transmitter and receiver are equipped with L-series battery plates and can also be powered by USB Type-C port and DC power input.

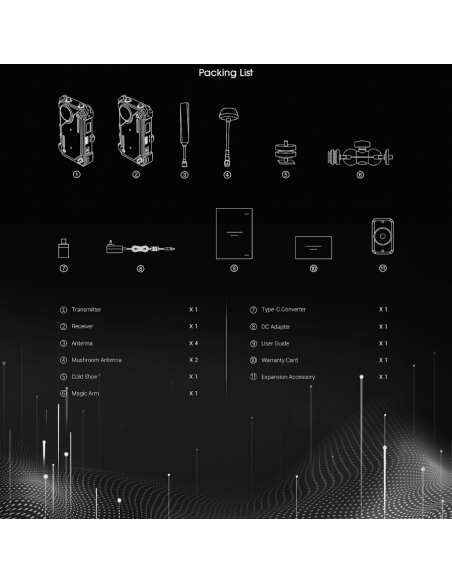

Packing List
1. Transmitter X1
2. Receiver X1
3. Antenna X4
4. Mushroom Antenna X2
5. Cold shoe X1
6. Peasecod Pan-tilt with Cold Shoe X1
7. Type-C Converter X1
8. DC Adapter X1
9. User Guide X1
10. Warranty Card X1
11. Expansion Accessory X1
12. Hard case like Peli X1
Key Features
- As low as 0.04ms Latency
- 1,000ft Wireless Transmission Range (LOS)
- Supports Smart Channel Switching

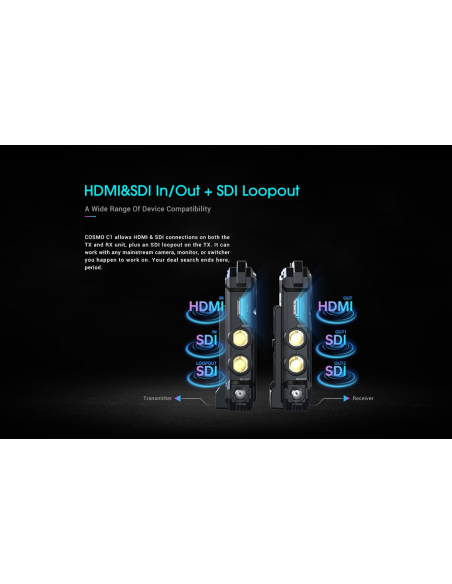

- Transmitter Supports SDI Input, HDMI Input, and SDI Loopout
- Receiver Supports 2*SDI Outputs and HDMI Output
- Supports DC Power Supply, Battery, and USB Type-C Power Supply

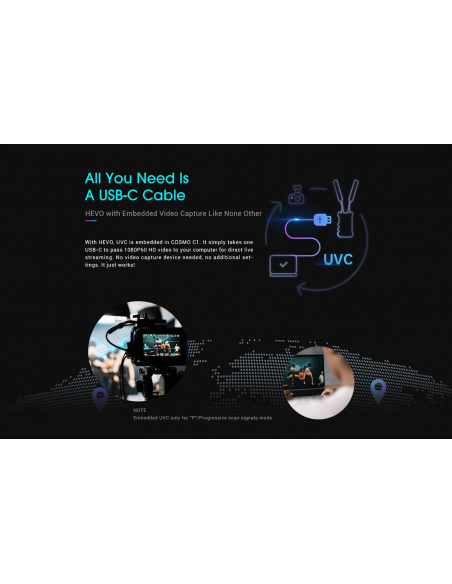

- Supports UVC Pull-stream

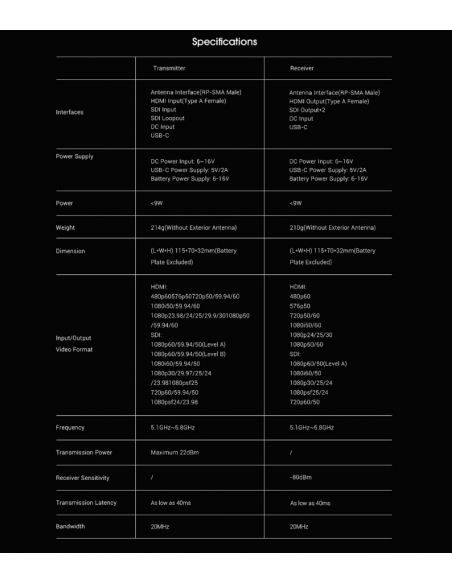

Hollyland COSMO C1 Specifications
Wireless Specifications
|
Wireless Range |
1,000ft (Line-of-Sight) |
|
Channel Bandwidth |
20 MHz |
|
Frequency Range |
5.1~5.8GHz |
|
Latency |
As low as 0.04s |
|
RF Power |
= 22 dBm |
|
RF Sensitivity |
-80 dBm |
|
Wi-Fi |
NO |

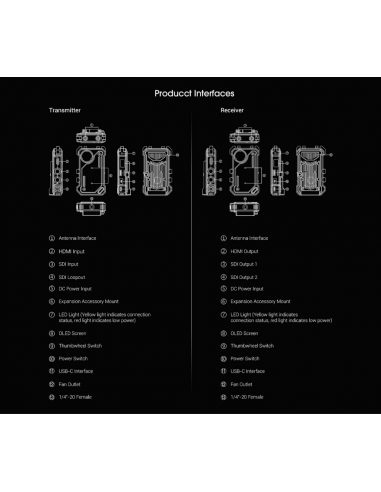

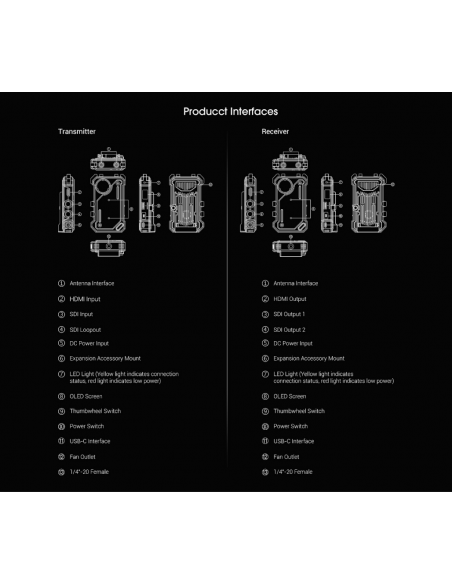

Interfaces
|

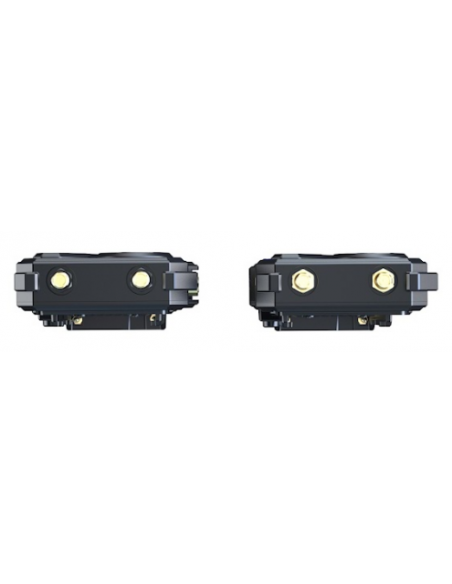

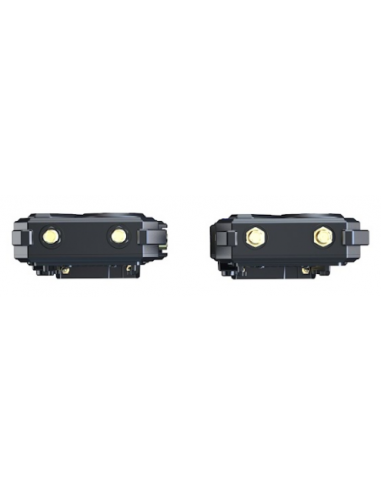

Transmitter Antenna Ports |
2 x RP-SMA Male |
|
Receiver Antenna Ports |
2 x RP-SMA Male |
|

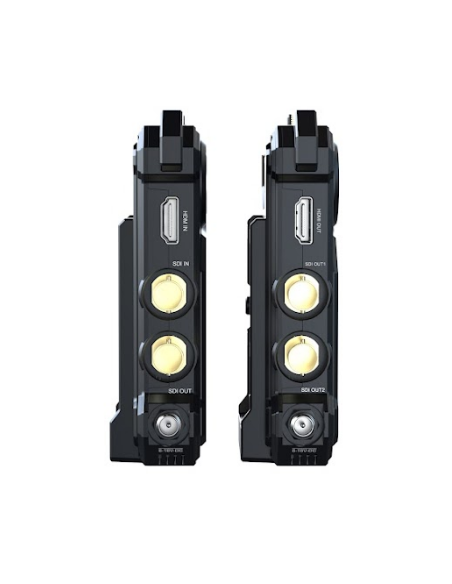

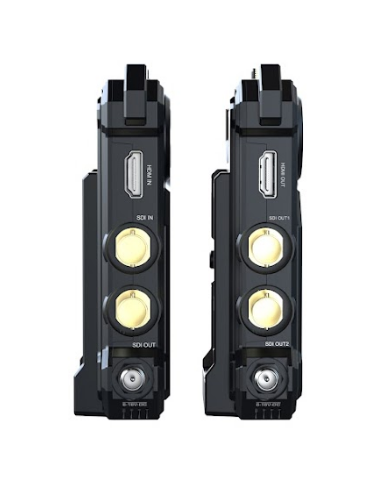

Transmitter Video Connectors |
1 x HDMI Input 1 x SDI Input 1 x SDI Loop out |
|
Receiver Video Connectors |
1 x HDMI Output 2x SDI Output |
|
Transmitter Other I/O |
1 x USB Type-C 1 x DC Power Input |
|
Receiver Other I/O |
1 x USB Type-C 1 x DC Power Input |
|
Embedded Audio |
HDMI |
Format Support
|
Video Format |
HDMI: 480p60 1080i50/59.94/60 1080p23.98/24/25/29.9/30 |

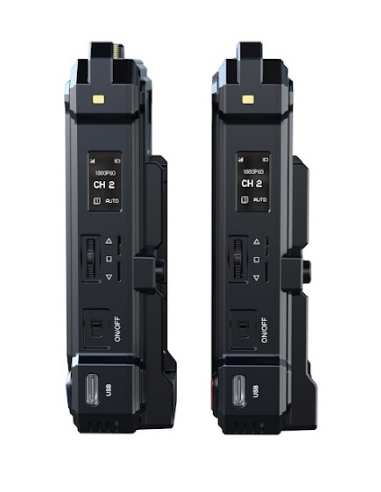

Display
|
Transmitter Panel Type |
OLED |
|
Receiver Panel Type |
OLED |
Power
|
Transmitter Battery Support |
1 x Sony L-Series / NP-F Type |
|
Receiver Battery Support |
1 x Sony L-Series / NP-F Type |
|
Transmitter Power Connector |
Barrel (6 to 12V DC) Input |
|
Receiver Power Connector |
Barrel (6 to 12V DC) Input |
|
Transmitter Power Consumption |
Device: (<9 W) |
|
Receiver Power Consumption |
Device: (<9 W) |
